HZL type vertical axial flow pump

Product Characteristics

■ With over thirty years of accumulated engineering application experience and optimization of the original blade hydraulic model using professional hydraulic analysis software Ansys, the hydraulic performance of the blade has been further enhanced.

■Equipped with an adjustable blade design, allowing adaptation to varying operational conditions.

■Stable operation, ensuring safety and reliability. Proven engineering application instances are available for flow rates ranging from 550 m³/h to 2000 m³/h.

■The pump features a concise and compact structure, making it suitable for evaporation crystallization circulation systems and crystallization cooling circulation systems.

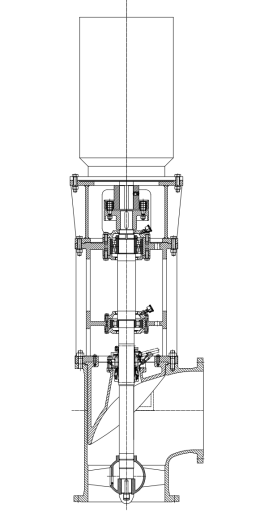

Product Structure

■The pump casing adopts a bent pipe structure, which can be fabricated by welding or manufactured as a single casting.

■The mechanical seal utilizes a cartridge-type structure, facilitating easy installation and removal while ensuring reliable operation.

■The core pump assembly typically consists of components such as the impeller, pump body, shaft, bearings, and seals. The drive section employs a direct coupling connection with a vertical motor.

■The bearing housing and motor base are designed as independent structures. One type of bearing housing can be matched with multiple specifications of motor bases, significantly improving component commonality and interchangeability, thereby reducing product costs.

■Designed for vertical installation, which simplifies both installation and maintenance. Inspection and maintenance of the pump's impeller and rotor components can be performed without disconnecting the inlet and outlet pipelines, helping to shorten maintenance cycles and reduce labor intensity and maintenance costs.
